TONNEAU COVER
• The Tonneau Cover can be removed and reinstalled by using the locking clampslocated underneath the Tonneau Cover.
NOTE:
Be sure that the Tonneau Cover is secured before driving.
EASY-OFF TAILGATE
•To simplify mounting of a camper unit with an overhang, the tailgate can be removed.
NOTE:
If your vehicle is equipped with a rear camera or RKE the electrical connector must
be disconnected prior to removing the tailgate.
Removing The Tailgate
• Disconnect the wiring harness for the rear camera or RKE (if equipped).
• Unlatch the tailgate and remove the support cables by releasing the lock tang from the pivot.
• Raise the right side of the tailgate until the right side pivot clears the hanger bracket.
• Slide the entire tailgate to the right to free the left side pivot.
• Remove the tailgate from the vehicle.
NOTE:
Do not carry the tailgate loose in the truck pickup box.
Locking Tailgate
• The lock is located next to the tailgate handle. The tailgate can be locked using the vehicle key.
WARNING!
To avoid inhaling carbon monoxide, which is deadly, the exhaust system on
vehicles equipped with “Cap or Slide-In Campers” should extend beyond the
overhanging camper compartment and be free of leaks.
UTILITY
129

PICKUP BOX
• You can carry wide building materials (sheets of plywood, etc.) by building a raisedload floor. Place lumber across the box in the indentations provided above the
wheel housings and in the bulkhead dividers to form the floor.
• There are stampings in the sheet metal on the inner side bulkheads of the box in front of and behind both wheel housings. Place wooden boards across the box from
side to side to create separate load compartments in the pickup box.
• There are four tie-down cleats bolted to the lower sides of the pickup box that can sustain loads up to 1000 lbs (450 kg) total.
Cargo Camera
•Your vehicle may be equipped with the Cargo Camera that allows you to see a image
of the inside of the pickup box. The image will be displayed in the Uconnect®screen.
• A display timer is initiated when the cargo camera image is displayed. The image will continue to be displayed until the display timer exceeds 10 seconds and the
vehicle speed is above 8 mph (13 km/h) or the image is deactivated by touching
the Uconnect
®display.
NOTE:
If the vehicle speed remains below 8 mph (13 km/h), the cargo camera image will be
displayed continuously until deactivated by touching the Uconnect
®display.
• The Cargo Camera is located in the bottom center area of the center high-mounted stoplamp (CHMSL).
NOTE:
If snow, ice, mud, or any foreign substance builds up on the camera lens, clean the
lens, rinse with water, and dry with a soft cloth. Do not cover the lens.
Turning Cargo Camera On Or Off — With Uconnect® 8.4A/8.4AN
1. Touch the “Controls” soft-key located on the bottom of the Uconnect®display.
2. Touch the “Cargo Camera” soft-key to turn the Cargo Camera system ON.
UTILITY
130

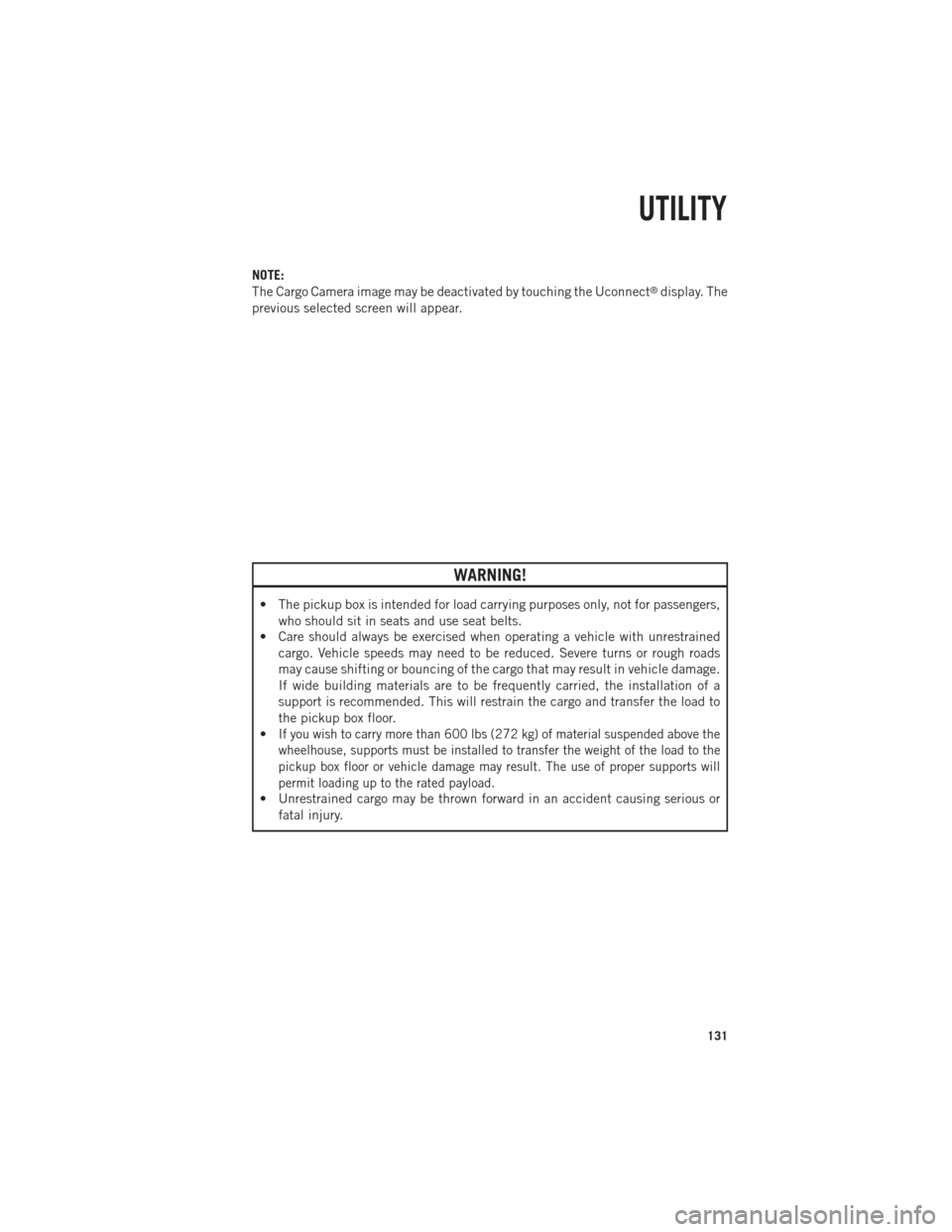

NOTE:
The Cargo Camera image may be deactivated by touching the Uconnect®display. The
previous selected screen will appear.
WARNING!
• The pickup box is intended for load carrying purposes only, not for passengers, who should sit in seats and use seat belts.
• Care should always be exercised when operating a vehicle with unrestrained
cargo. Vehicle speeds may need to be reduced. Severe turns or rough roads
may cause shifting or bouncing of the cargo that may result in vehicle damage.
If wide building materials are to be frequently carried, the installation of a
support is recommended. This will restrain the cargo and transfer the load to
the pickup box floor.
•
If you wish to carry more than 600 lbs (272 kg) of material suspended above the
wheelhouse, supports must be installed to transfer the weight of the load to the
pickup box floor or vehicle damage may result. The use of proper supports will
permit loading up to the rated payload.
• Unrestrained cargo may be thrown forward in an accident causing serious or
fatal injury.
UTILITY
131

RAMBOX®
• The RamBox®system is an integrated pickup box storage and cargo management
system consisting of three features:
• Integrated box side storage bins
• Cargo extender/divider
• Bed rail tie-down system
RamBox® Integrated Box Side Storage Bins
• The cargo storage bins provide watertight, lockable, illuminated storage for up to 150 lbs (68 kg) of evenly distributed cargo.
• To open a storage bin, press and release the pushbutton located on the lid.
• The interior of the RamBox
®will automatically illuminate when the lid is opened.
Pushing the switch once will turn off the bin lights, pushing the switch again will
turn the lights back on.
UTILITY
132

•Storage bins feature two removable drain plugs (to allow water to drain from bins).
To remove plug, pull up on the edge. To install, push plug downward into drain hole.
• The RamBox®storage bins can be locked and unlocked using the vehicle key or
the remote keyless entry transmitter.
NOTE:
Provisions are provided in the bins for cargo dividers and shelf supports. These
accessories (in addition to other RamBox
®accessories) are available from MOPAR®.
RamBox® Storage Bin Cover Emergency Release Lever
• As a security measure, a Storage Bin Cover Emergency Release is built into the storage bin cover latching mechanism.
NOTE:
In the event of an individual being locked inside the storage bin, the storage bin cover
can be opened from inside of the bin by pulling on the glow-in-the-dark lever
attached to the storage bin cover latching mechanism.
Bed Extender
• The bed extender has three functional positions: • Storage Position
• Divider Position
• Extender Position
Storage Position
• The storage position for the bed extender is at the front of the truck bed.
• To install the bed extender into the storage position, perform the following:• Make sure the center handle is unlocked using the vehicle key and rotate thecenter handle vertically to release the extender side gates.
• With the side gates open, position the extender fully forward in the bed against the front panel.
• Rotate the side gates closed allowing the outboard ends to be positioned in front of the cargo tie-down loops.
• Rotate the center handle horizontally to secure the side gates in the closed position.
• Lock the center handle using the vehicle key to secure the panel into place and assist against theft.
UTILITY
133

Divider Position
• There are 11 divider slots along the bed inner panels which allow for variouspositions to assist in managing your cargo.
• To install the bed extender into a divider position perform the following: • Make sure the center handle is unlocked using the vehicle key and rotate thecenter handle vertically to release the extender side gates.
• With the side gates open, position the extender so the outboard ends align with the intended slots in the sides of the bed.
• Rotate the side gates closed so that the outboard ends are secured into the intended slots of the bed.
• Rotate the center handle horizontally to secure the side gates in the closed position.
• Lock the center handle to secure the panel into place and assist against theft.
Extender Position
• The bed extender will add an additional 15 in (38 cm) in the back of the truck when additional cargo room is needed.
• To install the bed extender into the extender position, perform the following: • Lower the tailgate.
• Make sure the center handle is unlocked and rotate the center handle verticallyin order to release the extender side gates.
• Fit the end of the side gate ends onto the pin and handle.
• Rotate the handles to the horizontal position to secure into place.
Bed Rail Tie-Down System
• There are two adjustable cleats on each side of the bed that can be used to assist in securing cargo.
• Each cleat must be located and tightened down in one of the detents, along either rail, in order to keep cargo properly secure.
• To move the cleat to any position on the rail, turn the nut counterclockwise, approximately three turns. Then, pull out on the cleat and slide it to the detent
nearest the desired location. Make sure the cleat is seated in the detent and
tighten the nut.
• To remove the cleats from the utility rail, remove the end cap by pushing up on the locking tab, located on the bottom of the end cap. Slide the cleat off the end
of the rail.
UTILITY
134

CAUTION!
Failure to follow the following items could cause damage to the vehicle:
• Assure that all cargo inside the storage bins is properly secured.
• Do not exceed cargo weight rating of 150 lb (68 kg) per bin.
• Leaving the lid open for extended periods of time could cause the vehiclebattery to discharge. If the lid is required to stay open for extended periods of
time, it is recommended that the bin lights be turned off manually using the
on/off switch.
• Ensure cargo bin lids are closed and latched before moving or driving vehicle.
• Loads applied to the top of the bin lid should be minimized to prevent damage
to the lid and latching/hinging mechanisms.
• Damage to the RamBox
®bin may occur due to heavy/sharp objects placed in
bin that shift due to vehicle motion. In order to minimize potential for damage,
secure all cargo to prevent movement and protect inside surfaces of bin from
heavy/sharp objects with appropriate padding.
• The maximum load per cleat should not exceed 250 lbs (113 kg) and the angle
of the load on each cleat should not exceed 60 degrees above horizontal, or
damage to the cleat or cleat rail may occur.
WARNING!
•Always close the storage bin covers when your vehicle is unattended or in motion.
• Do not allow children to have access to the storage bins. Once in the storagebin, young children may not be able to escape. If trapped in the storage bin,
children can die from suffocation or heat stroke.
• In a collision, serious injury could result if the storage bin covers are not
properly latched.
• Do not use a storage bin latch as a tie down.
• To reduce the risk of potential injury or property damage:
• Cargo must be secured.
• Do not exceed cargo load rating of your vehicle.
• Secure all loads to truck utilizing cargo tie-downs.
• Extender should not be used as cargo tie-down.
• When vehicle is in motion do not exceed 150 lbs (68 kg) load on thetailgate.
• The bed extender is not intended for off road use.
•
When not in use, the extender/divider should be in stowed or divider posi-
tion with the tailgate closed.
• When in use, all handles are to be in the locked position.
UTILITY
135

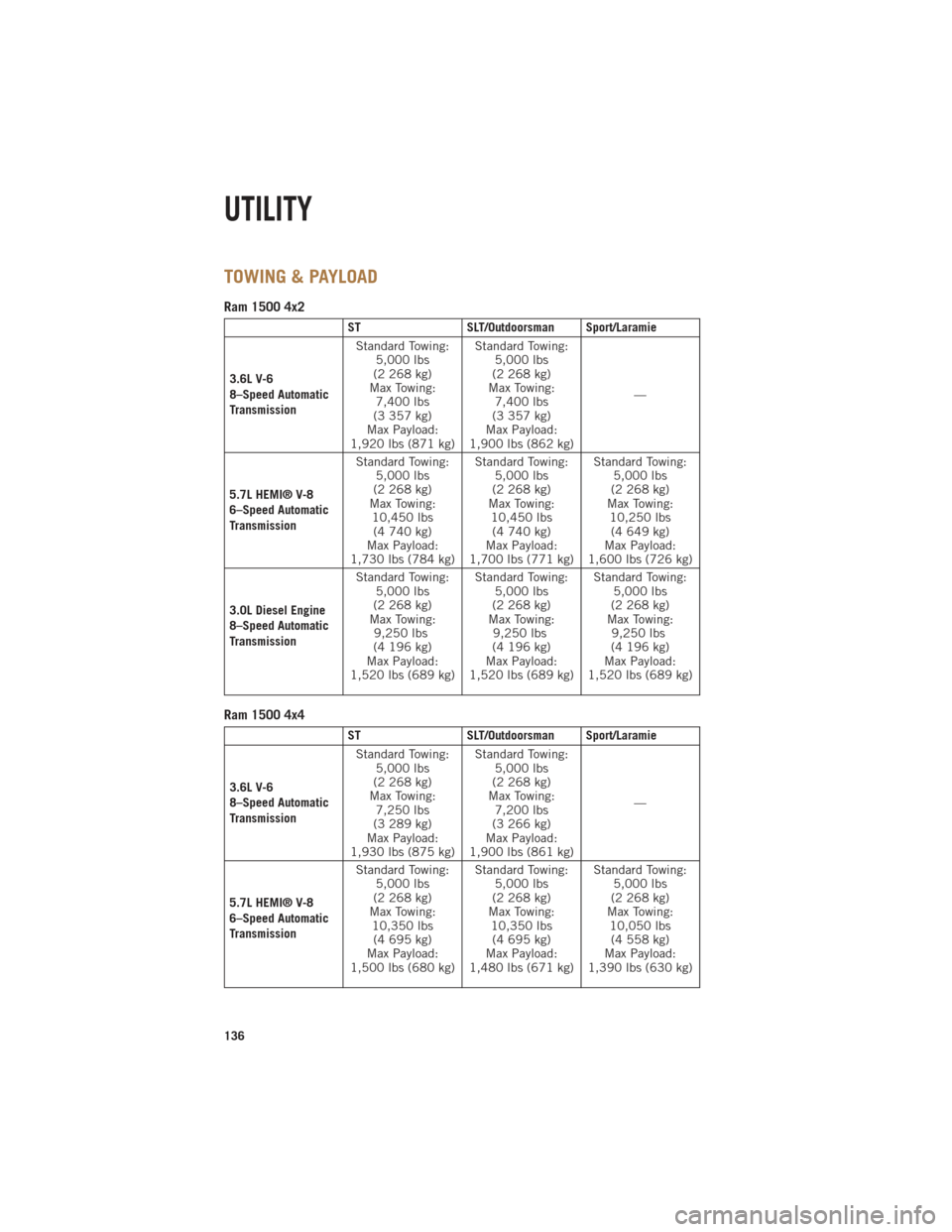

TOWING & PAYLOAD
Ram 1500 4x2
STSLT/Outdoorsman Sport/Laramie
3.6L V-6
8–Speed Automatic
Transmission Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 7,400 lbs
(3 357 kg)
Max Payload:
1,920 lbs (871 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 7,400 lbs
(3 357 kg)
Max Payload:
1,900 lbs (862 kg) —
5.7L HEMI® V-8
6–Speed Automatic
Transmission Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 10,450 lbs(4 740 kg)
Max Payload:
1,730 lbs (784 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 10,450 lbs(4 740 kg)
Max Payload:
1,700 lbs (771 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 10,250 lbs(4 649 kg)
Max Payload:
1,600 lbs (726 kg)
3.0L Diesel Engine
8–Speed Automatic
Transmission Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 9,250 lbs
(4 196 kg)
Max Payload:
1,520 lbs (689 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 9,250 lbs
(4 196 kg)
Max Payload:
1,520 lbs (689 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 9,250 lbs
(4 196 kg)
Max Payload:
1,520 lbs (689 kg)
Ram 1500 4x4
ST SLT/Outdoorsman Sport/Laramie
3.6L V-6
8–Speed Automatic
Transmission Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 7,250 lbs
(3 289 kg)
Max Payload:
1,930 lbs (875 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 7,200 lbs
(3 266 kg)
Max Payload:
1,900 lbs (861 kg) —
5.7L HEMI® V-8
6–Speed Automatic
Transmission Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 10,350 lbs(4 695 kg)
Max Payload:
1,500 lbs (680 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 10,350 lbs(4 695 kg)
Max Payload:
1,480 lbs (671 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 10,050 lbs(4 558 kg)
Max Payload:
1,390 lbs (630 kg)
UTILITY
136

STSLT/Outdoorsman Sport/Laramie
3.0L Diesel Engine
8–Speed Automatic
Transmission Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 9,250 lbs
(4 196 kg)
Max Payload:
1,520 lbs (689 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 9,250 lbs
(4 196 kg)
Max Payload:
1,520 lbs (689 kg) Standard Towing:
5,000 lbs
(2 268 kg)
Max Towing: 9,250 lbs
(4 196 kg)
Max Payload:
1,520 lbs (689 kg)
Ram 2500 & 3500
ST SLT/OUTDOORSMAN/ LARAMIE
5.7L HEMI® V-8
6-Speed Automatic
Transmission Max Towing:
13,850 lbs(6 282 kg)
Max Payload: 4,480 lbs
(2 032 kg) Max Towing:
13,810 lbs(6 282 kg)
Max Payload: 4,440 lbs
(2 014 kg) Max Towing:
13,350 lbs(6 055 kg)
Max Payload: 4,410 lbs
(2 000 kg)
6.4L HEMI® V-8
6-Speed Automatic
Transmission Max Towing:
16,450 lbs(7 462 kg)
Max Payload: 7,220 lbs
(3 275 kg) Max Towing:
16,400 lbs(7 439 kg)
Max Payload: 7,170 lbs
(3 252 kg) Max Towing:
15,810 lbs(7 171 kg)
Max Payload: 6,950 lbs
(3 152 kg)
6.7L Cummins® Diesel
2500 ST SLT
Bighorn/Lonestar Laramie Outdoorsman 3500 ST SLT
Bighorn/Lonestar Laramie Outdoorsman
6.7L Cummins® Turbo
Diesel 6-Speed Manual
Transmission Max Towing: 16,710 lbs
(7 579 kg)
Max Payload: 2,880 lbs (1 306 kg) Max Towing: 18,200 lbs
(8 255 kg)
Max Payload: 6,640 lbs (3 011 kg)
6.7L Cummins® Turbo
Diesel 6-Speed Automatic
Transmission Max Towing: 17,810 lbs
(8 078 kg)
Max Payload: 2,980 lbs (1 351 kg) Max Towing: 30,060 lbs
(13 634 kg)
Max Payload: 6,710 lbs (3 043 kg)
NOTE:
For additional trailer towing information (maximum trailer weight ratings) refer to
the following website addresses:
•http://www.ramtrucks.com.
• http://www.ramtruck.ca (Canada).
UTILITY
137

TOW/HAUL MODE
• When driving in hilly areas, towing a trailer, carrying a heavy load, etc., andfrequent transmission shifting occurs, press the TOW/HAUL switch to select
TOW/HAUL mode. This will improve performance and reduce the potential for
transmission overheating or failure due to excessive shifting. When operating in
TOW/HAUL mode, transmission upshifts are delayed, and the transmission will
automatically downshift (for engine braking) during steady braking maneuvers.
• The “TOW/HAUL Indicator Light” will illuminate in the instrument cluster to
indicate that TOW/HAUL mode has
been activated. Pressing the switch a
second time restores normal operation.
If the TOW/HAUL mode is desired, the
switch must be pressed each time the
engine is started.
INTEGRATED TRAILER BRAKE MODULE
The Integrated Trailer Brake Controller allows you to automatically or manually
activate the Electric Trailer Brakes and Electric Over Hydraulic Trailer Brakes for a
better braking performance when towing a trailer.
NOTE:
The Integrated Trailer Brake Controller is located in the center stack below the
climate controls.
This module will have four different options depending on the type of trailer you want
to tow and can be selected through the 3.5” Electronic Vehicle Information Center
(EVIC) or touchscreen radio.
• Light Electric
• Heavy Electric
• Light EOH (Electric Over Hydraulic)
• Heavy EOH (Electric Over Hydraulic)
UTILITY
138
